YHM RESONATOR R2 – 30 CAL SUPPRESSION SYSTEM

Quiet, Lightweight, and Cost Effective

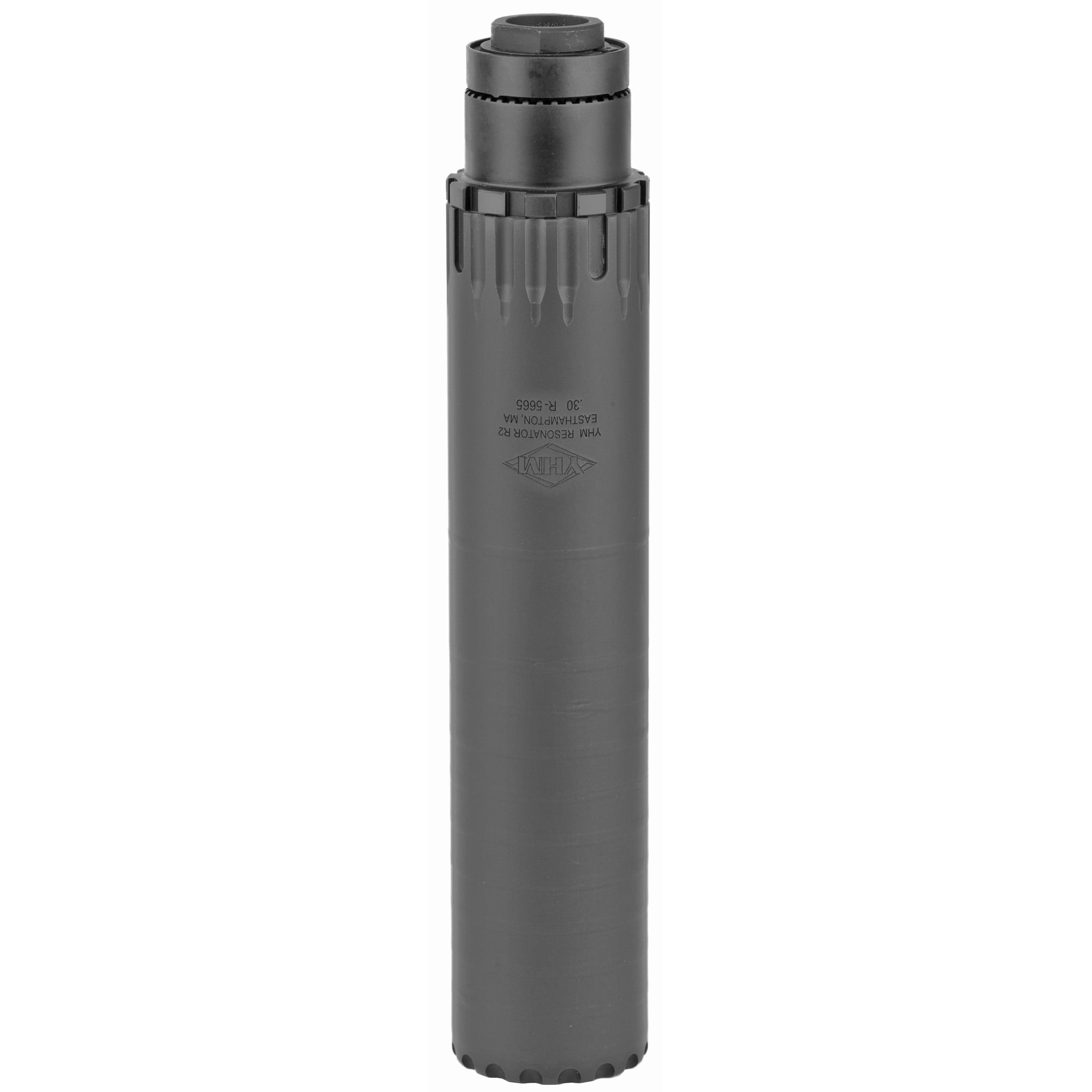

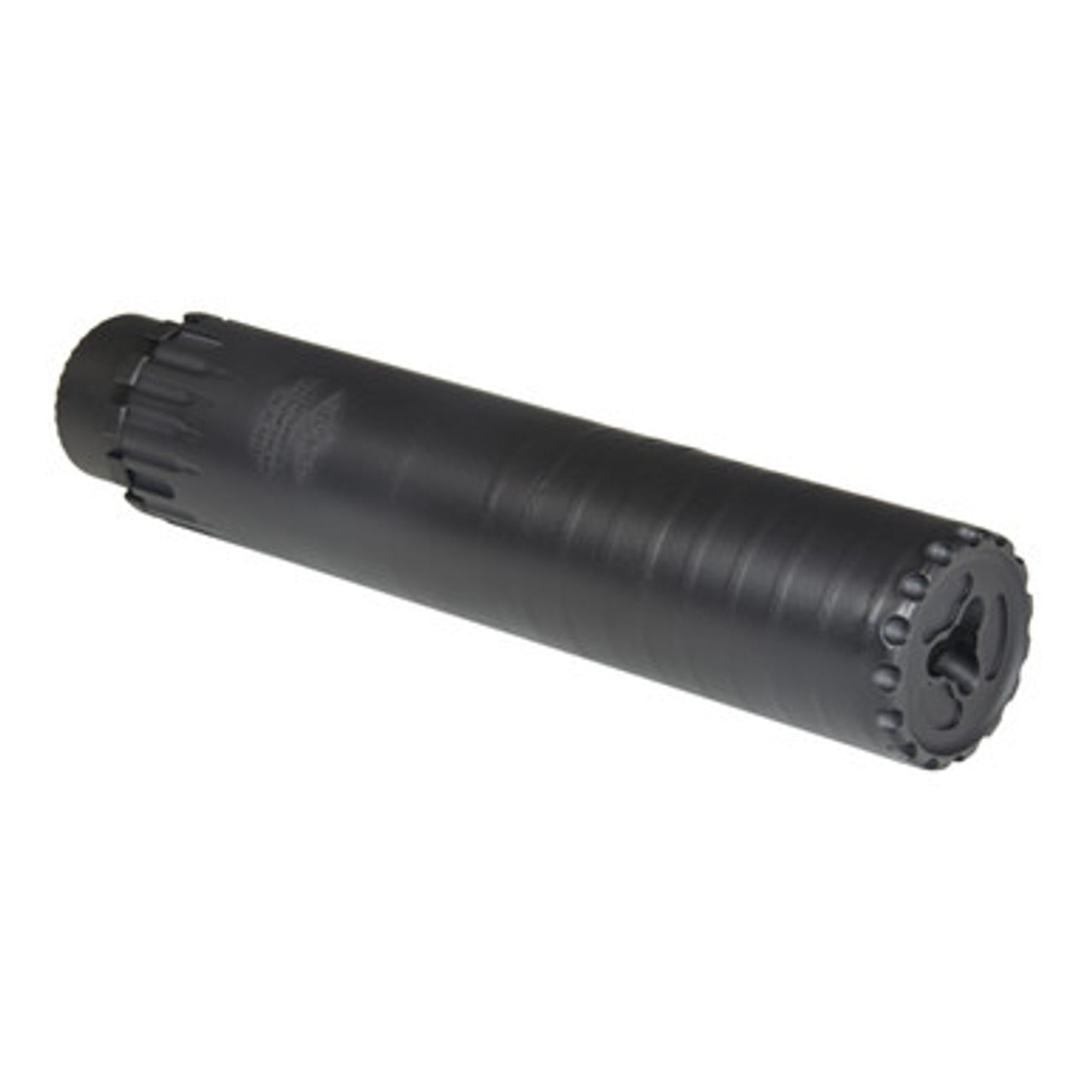

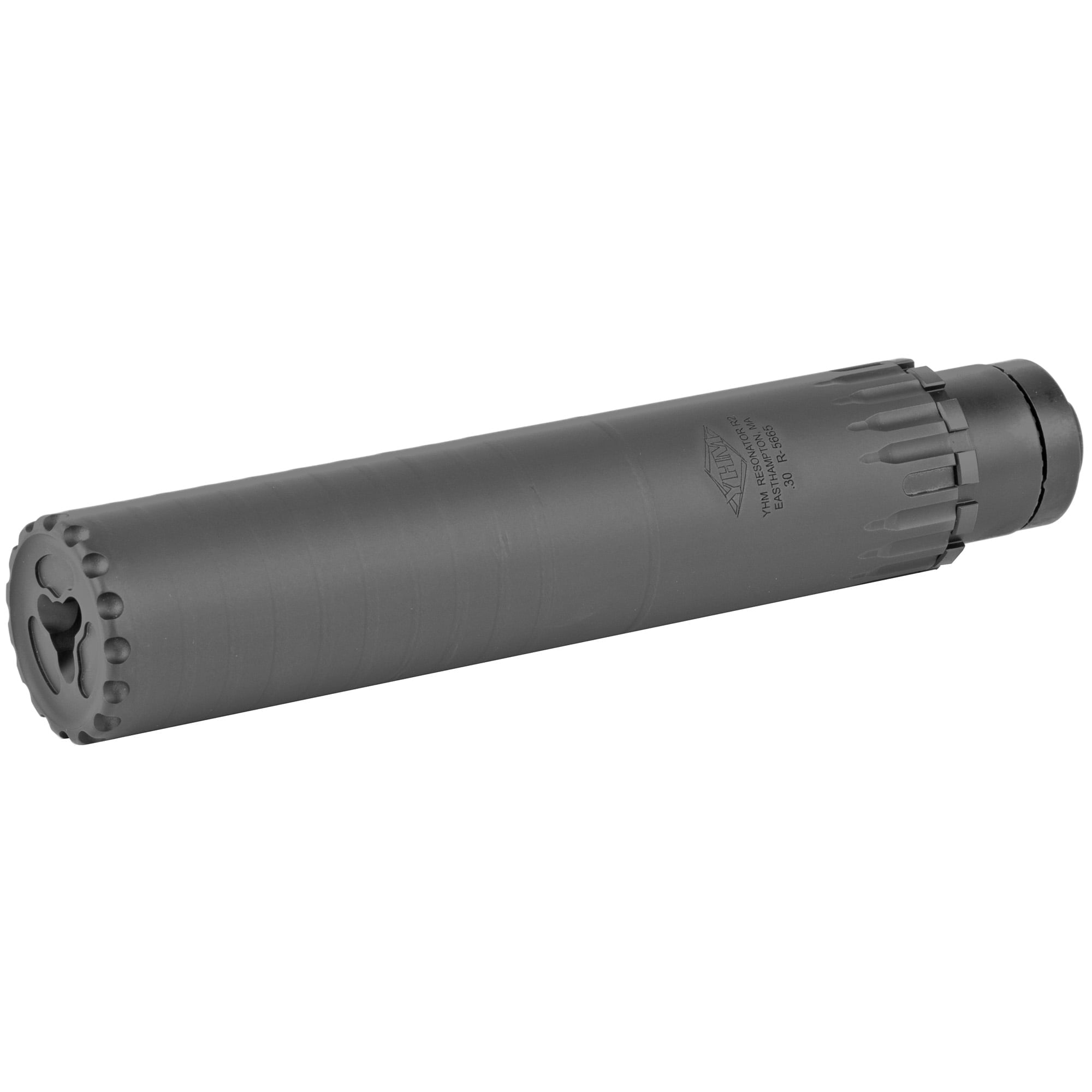

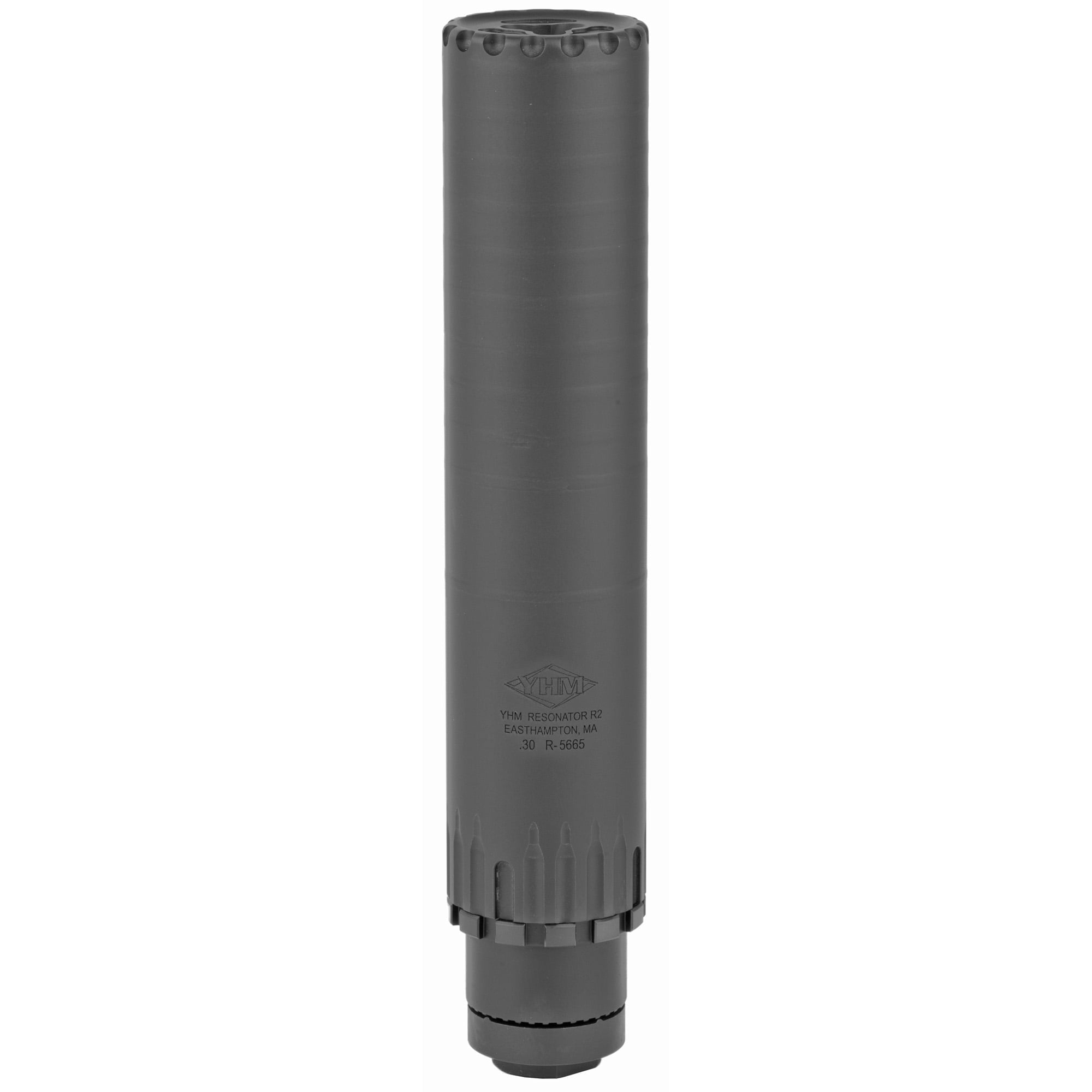

YHM’s .30 caliber sound suppressor, the Resonator® R2, was created to provide the shooting enthusiast a quiet, lightweight and cost effective suppressor. The notched rim and tri-port muzzle on the end cap make it stand out among the crowd. Capable of being used on multiple calibers and host weapons, the Resonator® R2 can be used on rifle calibers ranging from .17 HMR through 300 RUM making it a great choice for all shooters. Like the Turbo® T2, the Resonator® R2 uses a tubeless design which consists of heat treated 17-4 stainless steel and a heat treated 718 Inconel blast baffle which allows the suppressor to be full auto rated and designed for rigorous use. Includes YHM-4302 Q.D. Mount of your choice.
Sound Pressure levels are as follows:

• 20″ Remington 700 shooting .308 Winchester 147 grain measured 135Db
• 16″ 6.8mm AR-15 shooting 110 grain measured 132.5Db
• 14.5″ 5.56mm AR-15 shooting 55 grain measured 132Db

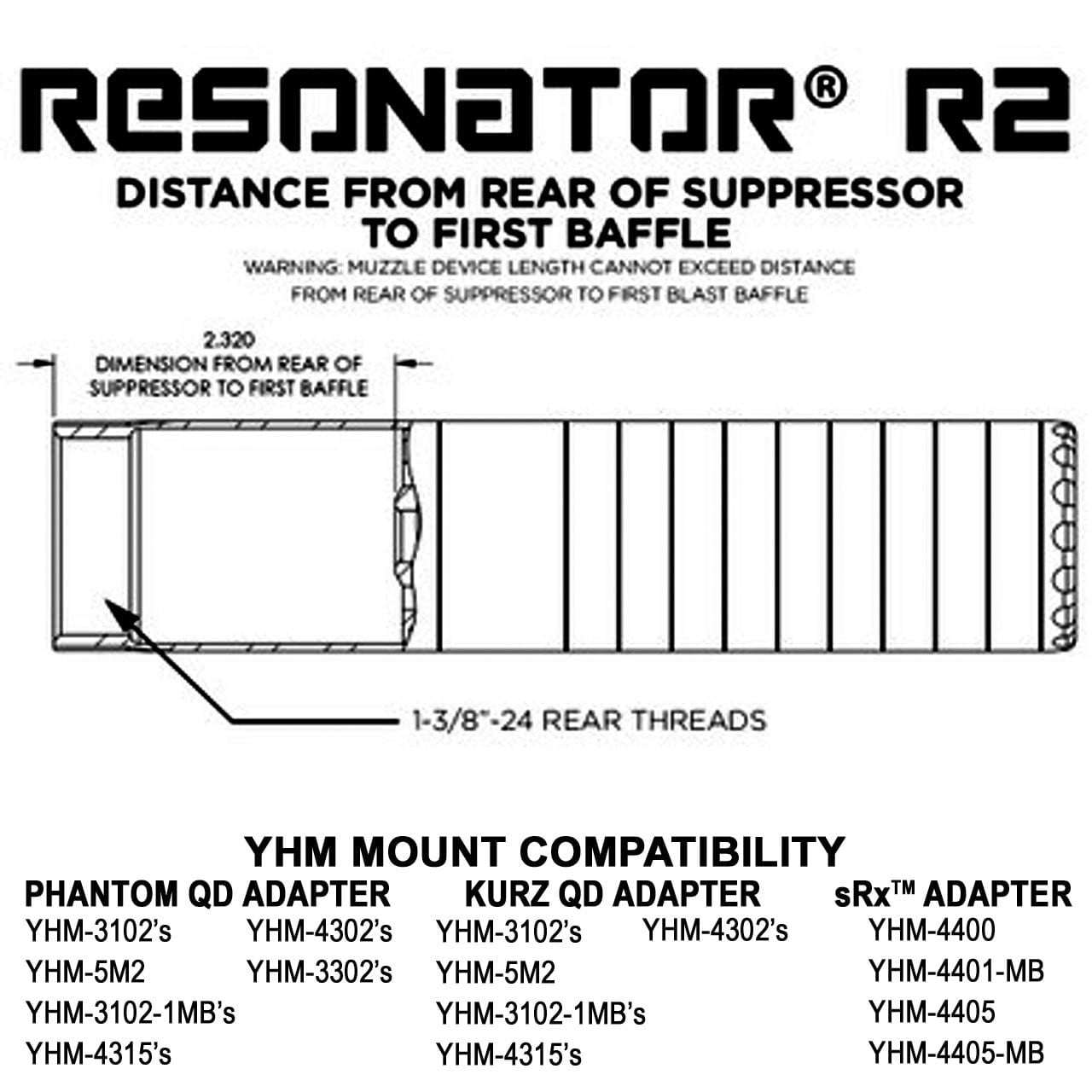

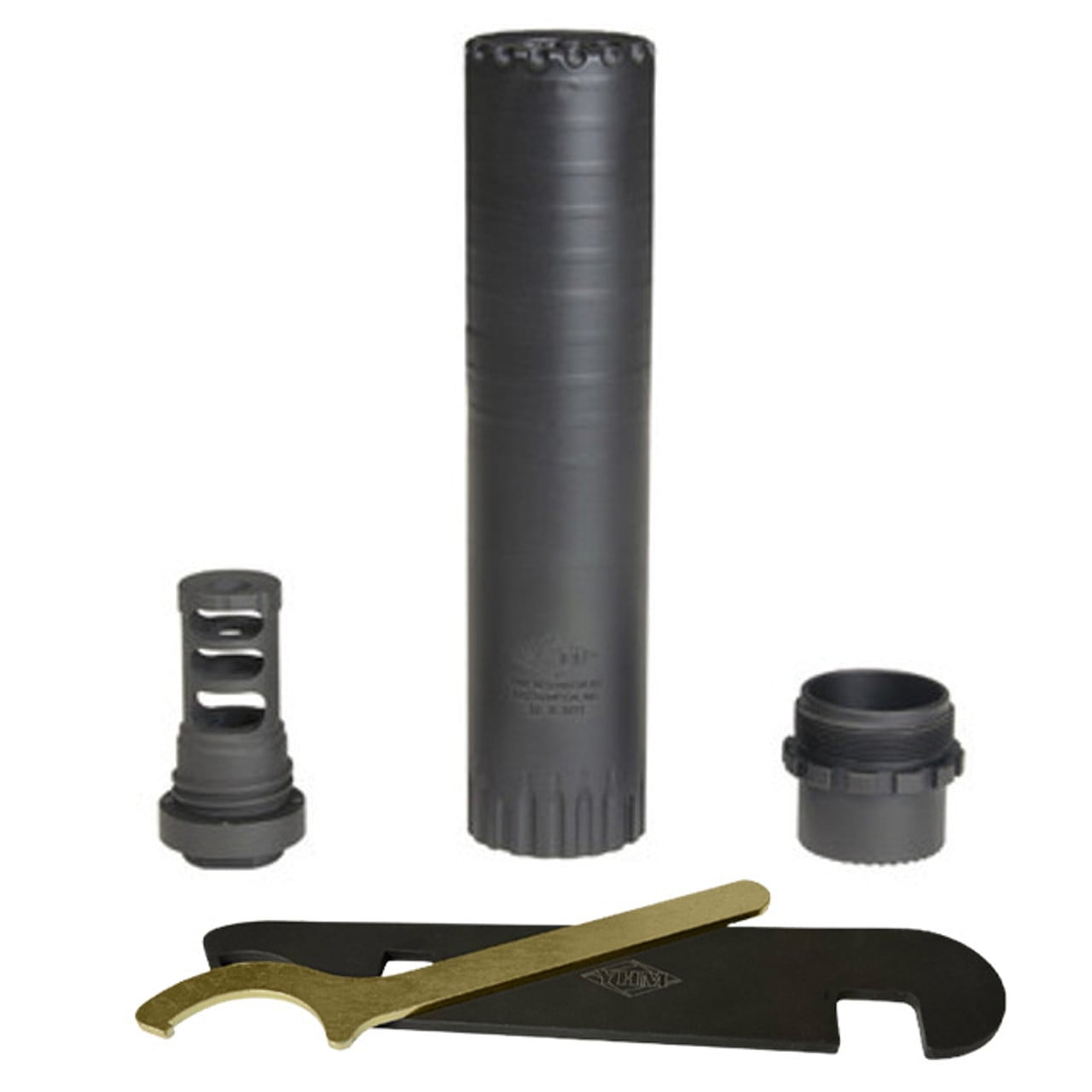

The Resonator® ships with the Phantom® Q.D. Adapter, 2 suppressor wrenches, and a YHM-4302 mount. It will fit all YHM-4302, YHM-3302 and YHM-3102/YHM-5M2 mounts.

• Caliber……………………………………………………………………………………………………..30 Cal.
• Overall Length……………………………………6.95″ (7.825″ with Phantom® Q.D. Adapter)
• Diameter…………………………………………………………………………………………………….1.562″
• Weight………………………………………………….16.802 Oz. (with Phantom® Q.D. Adapter)
• Suppression Level……………………………………………………………..135 dB on 20″ .308 Win
• Material…………………………………………………..17-4 Ph SS and Heat Treated Inconel 718
• Finish……………………………………………………………………………………Matte Black Cerakote
• Method of Attachment……………………………………………..1 3/8″-24 Adaptable Interface
• Rating…………………………………………………..17HMR through .300 RUM/.300 WIN MAG
• Full Auto Rated………………………………………………………………………………Full Auto Rated

Minimum Barrel Lengths:

• 7.62×51 / .308 Winchester: 10.5″ minimum barrel length
• 5.56 NATO, 6.8SPC, 7.62×39: 10″ minimum barrel length
• .300 Win Mag / 300 RUM: 20″ minimum barrel length
• 300 Blackout: 7.5″ minimum barrel length
• Click HERE to view and download your Resonator R2 Owners Manual.
• LINK TO SUPPRESSOR WARRANTY
