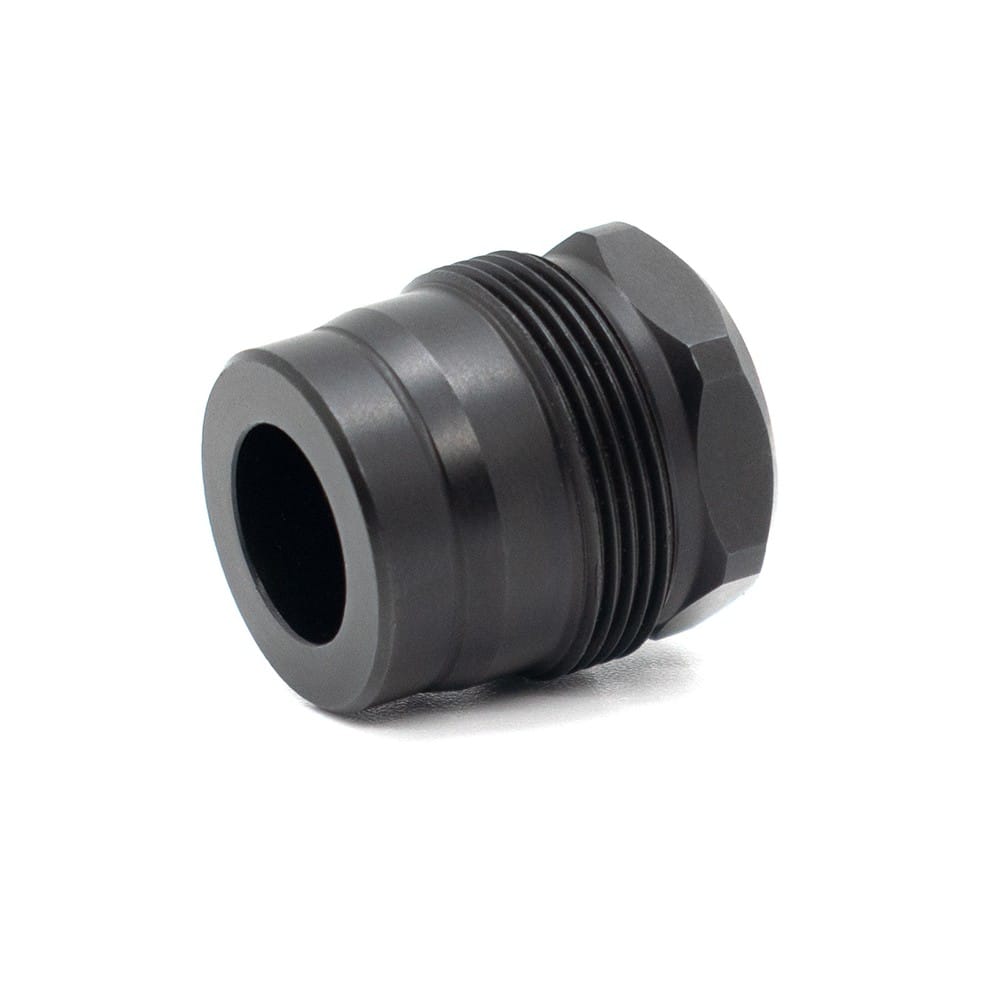

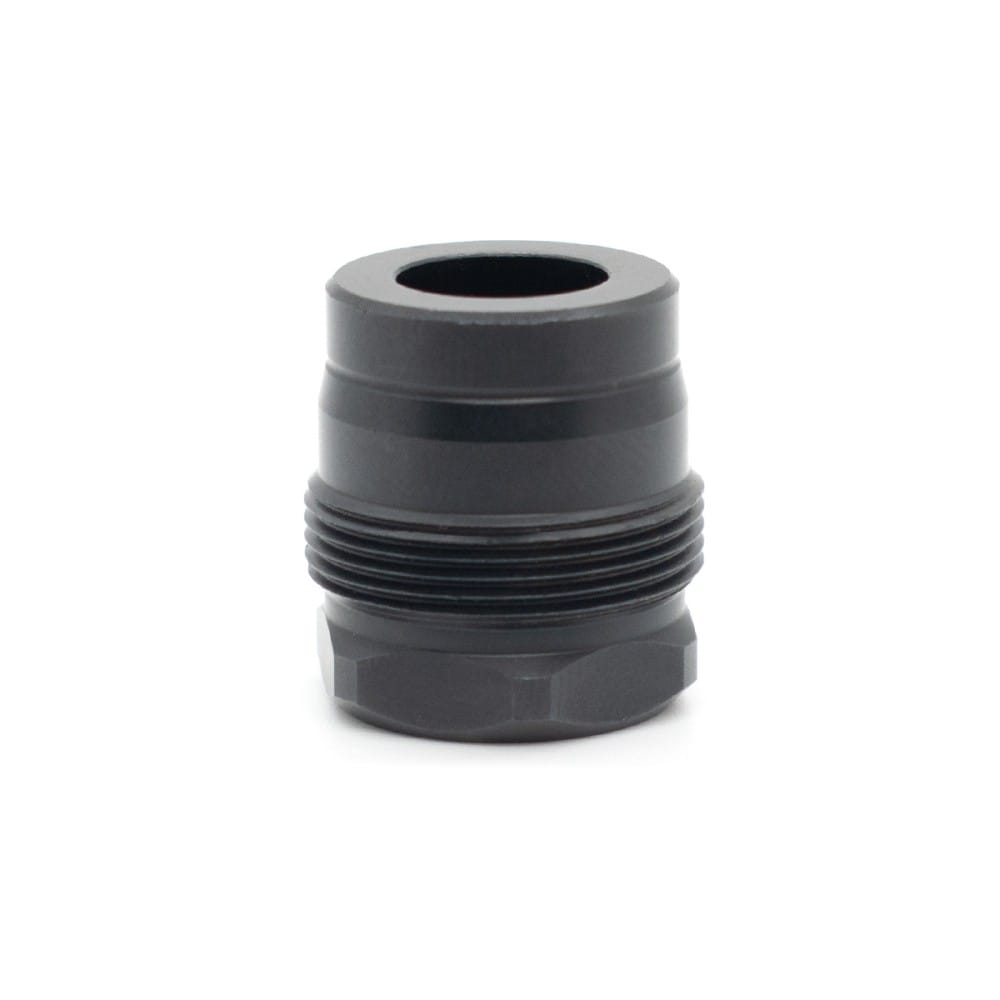

REARDEN MINI MUZZLE DEVICE –  NITRIDE

The Rearden Mini muzzle device (nitride) is a minimalist suppressor mount designed to be compatible with Plan B style suppressor adapters and Rearden’s own Atlas adapters. It is manufactured from 17-4 stainless steel with a Nitride or heat-treated finish. The Mini is available with either a 25-degree taper for tapered barrels (like some SIG and Q firearms) or a square shoulder for standard AR-15 barrels

• 17-4 PH H900
• Atlas and Atlas XL Compatible
• Plan B Compatible
• Atlas Adapter Overrun Approximately 0.050″
• Atlas XL Adapter No Overrun
• Black Nitride Finish (67 HRC Surface Hardness)
• Shims Not Included

Thread Pitch	Weight	Length	Length Added
1/2-28 Square	1.5 oz	.968″	0.343″
1/2-28 Tapered	1.48 oz	0.968″	0.155″
5/8-24 Tapered	1.06 oz	0.968″	0.155″
13.5×1 LH	1.41 oz	0.968″	0.218″
14×1 LH	1.59 oz	0.968″	0.443″
11/16-24	.83 oz	0.968″	0.343″

Always use an alignment rod to ensure that the entire system is set up correctly. Make sure all surfaces are cleaned and the muzzle device has been torqued and Rockset to the barrel.  Use on a Q can voids your warranty, be warned.

Torque the muzzle device to approximately 30 ft lbs. Make sure the muzzle device is square against the shoulder. When setting the silencer on the muzzle device, ensure that the threads and tapers are clean. Torque the suppressor to 10 ft lbs. Ensure alignment. Enjoy.
